JPES

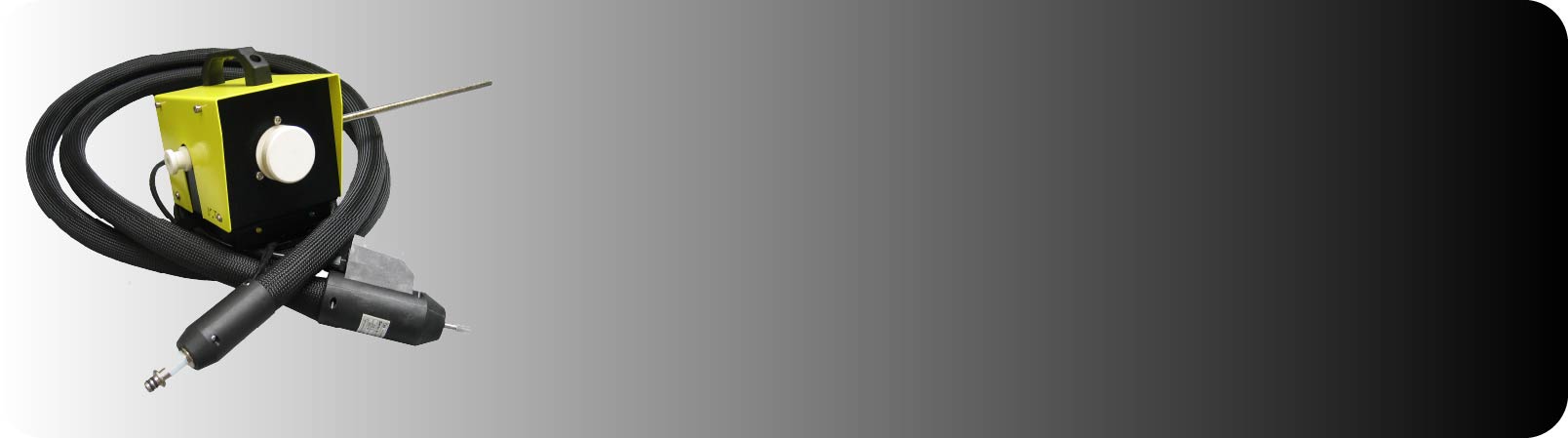

Portable Gas Sampling Probe with JHSo Heated Sample Line

For mobile extractive gas analysis
For emission and process monitoring
For mobile representative gas sampling in dust and humidity-containing processes
For the removal of dust from the sample gas stream
For condensate-free transport from the sampling point to the conditioning system or the analyser
Especially designed for:
- stack testers
- authorities (QAL 2)
- mobile back-up CEMS

Lightweight and compact
Quick and very easy start-up
Very easy operation
Very easy and quick change of the filter element without tools
Complete, ready for use set, no additional equipment necessary
No separate temperature controller necessary
Only one power connection is necessary (also with the heated sampling tube JBER)
No loose cables

Robust, compact transport case with all necessary parts for mobile gas sampling: gas sampling probe, heated sample line, sampling tubes, filter elements, calibration gas connection, mounting chains, …
Compact gas sampling probe with operation and temperature status LEDs
Homogeneous heating to 180 °C without cold spots
Gas sampling probe with self-limiting PTC heating element
Calibration gas connection at the gas sampling probe
Heated sample line JHSo with integrated temperature controller and operation status LED
All electric connection cables are integrated in the heated sample line
Exclusively Quick-On connectors for all gas connections
Flexible, light weight and robust heated sample line
Comprehensive list of options for various applications
